Power. Payload. Protection.
The X-Vac® Hydro-Excavators are known throughout the specialty contractor community as the most powerful and reliable contractor trucks available.
X-Vac® Hydro-Excavators set the industry standard as a safe and efficient method for locating underground utilities, exposing broken water lines, cleaning out potholes, and vacuuming a wide range of materials.
Compare models
Compare models
X-8

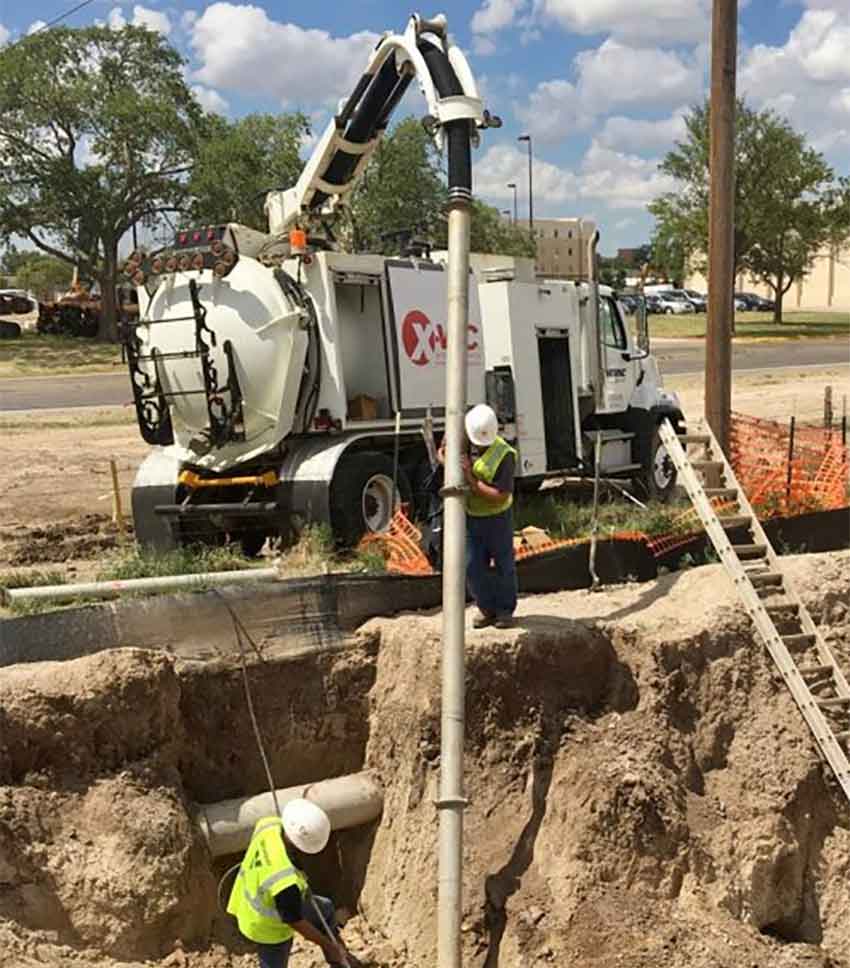

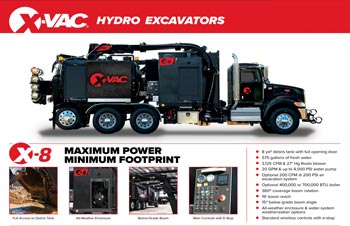

X-Vac X-8 Hydro Excavator
The tandem-axle X-8 Hydro Excavator offers the highest legal payload on the market with a surprisingly compact footprint. Smaller than traditional hydro excavators, the X-8 still has the power to complete projects with impressive efficiency and effectiveness.
Specifications
- Compact footprint for excellent maneuverability
- Quietest hydro excavator in the industry
- 3,125 CFM 27” Hg high-performance blower
- 8” vacuum hose/system
- Reach-anywhere 360º top-loading boom
- Up to 23,000-lb payload capacity
- 575-gallon freshwater capacity
- Lifetime warranty on water tanks and debris body
- Insulated and heated enclosure
- 20 GPM@4,000 psi run-dry water pump
- All-weather performance
X-12

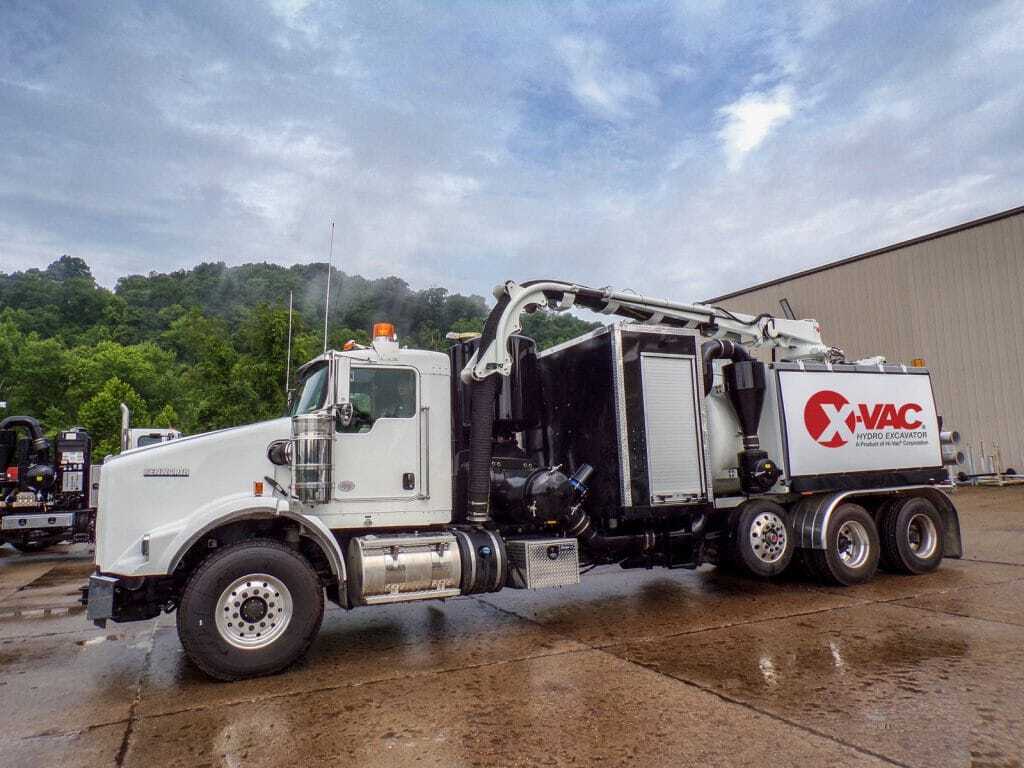

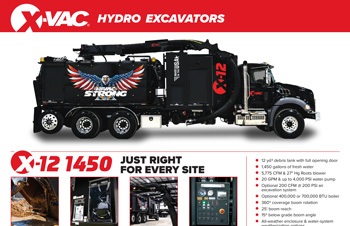

X-Vac X-12 1450 Hydro Excavator
The X-12 1450 Hydro Excavator provides maximum water capacity on a standard-size chassis. With more fresh water, combined with 12-cubic yards of debris capacity, it keeps you running longer on-site between refills.
Specifications
- 1,450-gallon fresh water capacity
- 12-cubic yard debris tank ideal for transporting material or dumping on-site
- High-performance 5,775 CFM 27” Hg blower
- Top-mounted 360º top-mounted boom for maximum coverage
- Insulated and heated enclosure
- Lifetime warranty on water tanks and debris body
- 20 GPM@ up to 4,000 psi run-dry water pump
- All-weather performance
X-13

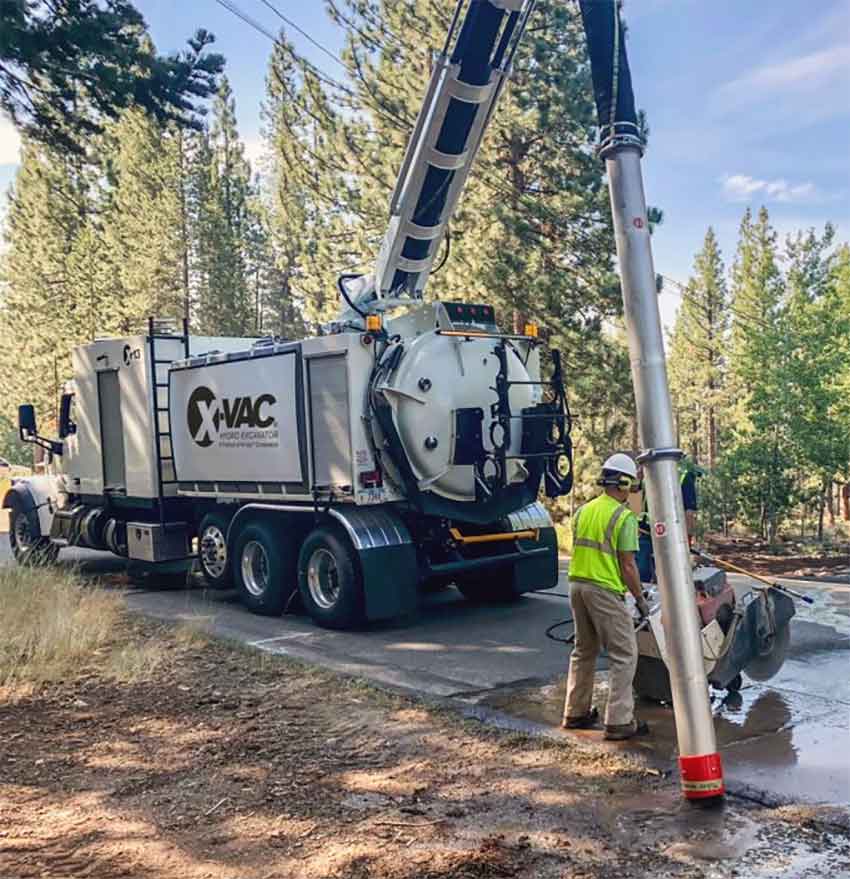

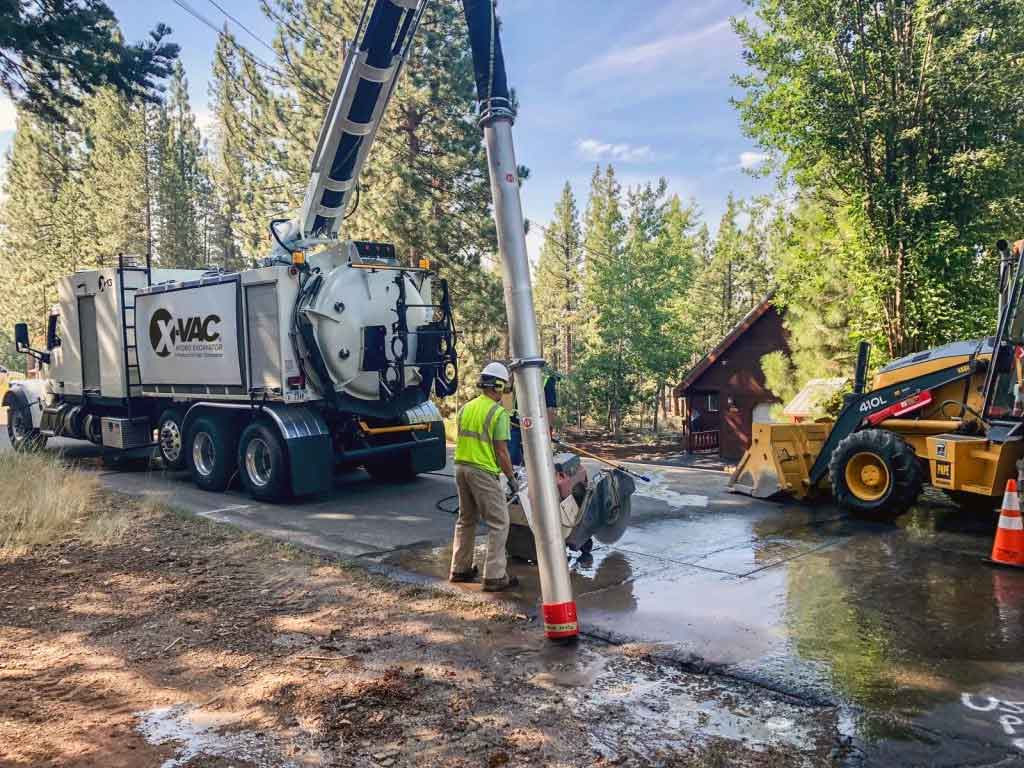

X-Vac X-13 Hydro Excavator
The X-13 Hydro Excavator provides maximum debris capacity on a standard-size chassis. With more volume for dense slurries, combined with 1,150 gallons of onboard fresh water, it keeps you running longer on-site between spoil dumps.
Specifications
- 1,150-gallon fresh water capacity
- High-performance 5,775 CFM 27” Hg blower
- Top-mounted 360º top-mounted boom for maximum coverage
- Insulated and heated enclosure
- Lifetime warranty on water tanks and debris body
- 20 GPM@ up to 4,000 psi run-dry water pump
- All-weather performance
X-15

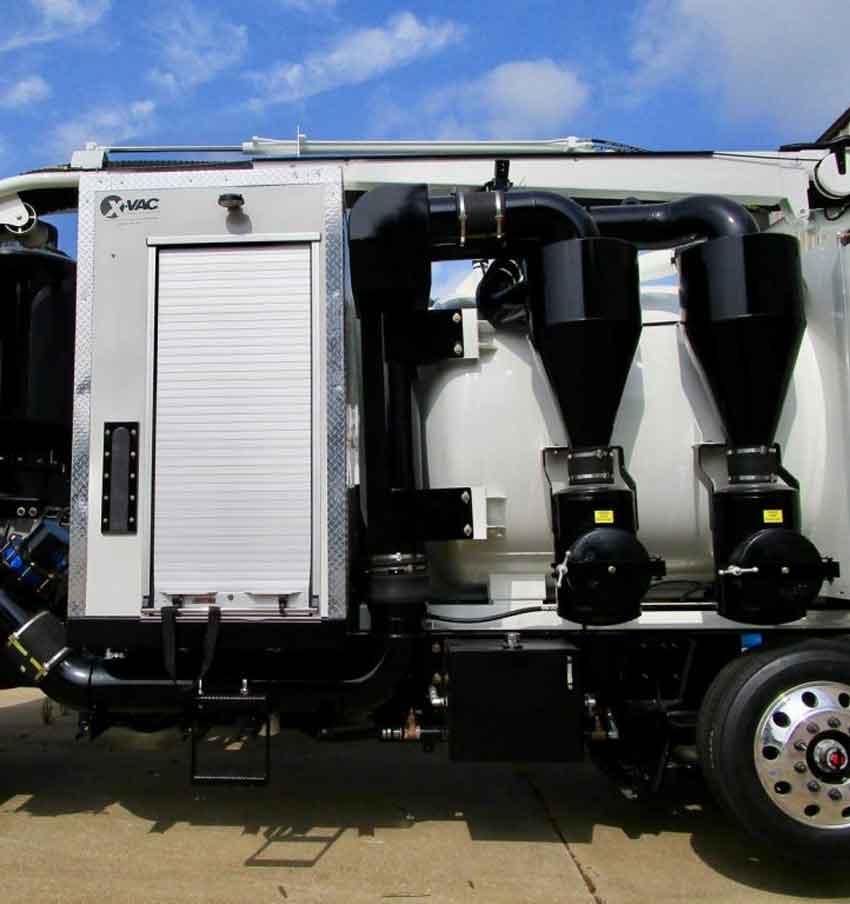

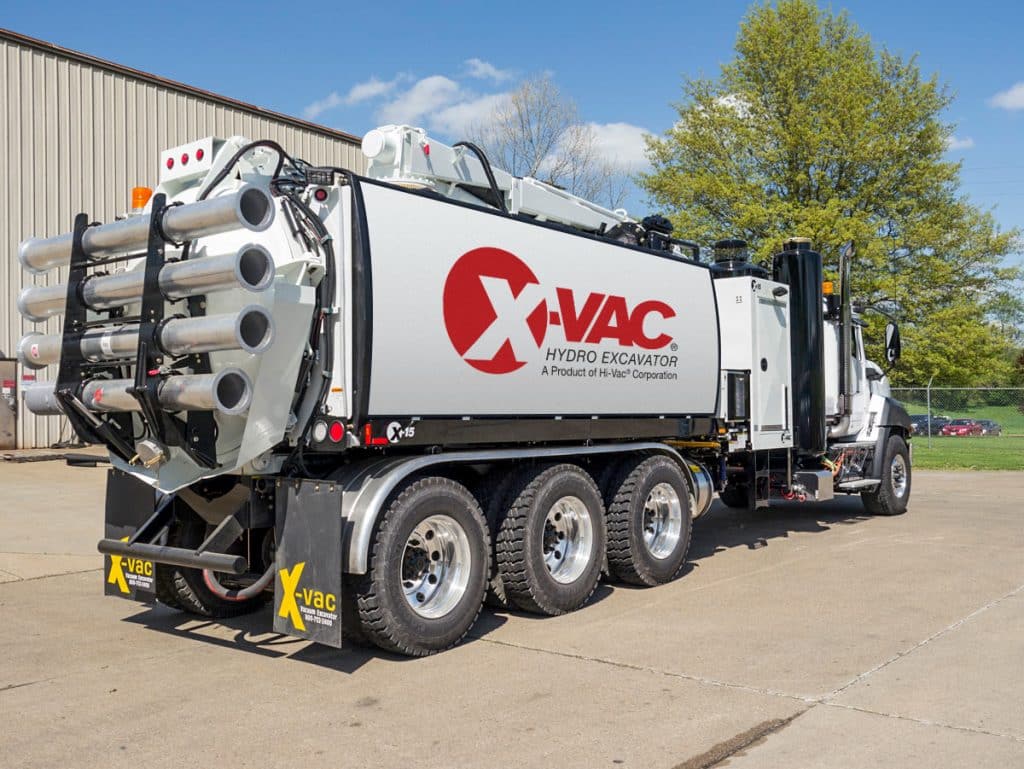

X-15 Hydro Excavator
The X-15 is the ultimate in large and remote site hydro excavation. With 15 cubic yards of debris and 1,650 gallons of fresh water, carried on a high-ground clearance tri-drive chassis, X-15 gives you the capacity to tackle jobs where offsite fill or dump runs aren’t realistic or economical.
Specifications
- Severe-duty, cold-weather recirculation system
- 20 GPM @ 4000 psi Triplex water pump
- 5250 CFM, 27” Hg Vacuum Blower
- 700,000 BTU boiler
- Reach-anywhere 360º top-loading boom
- 15-cubic yard debris tank
- Wireless remote controls for blower and water pump
- Six 275-gallon water tanks (1,650 total)
- Industry’s highest standard ground clearance
- Heated enclosure for water heater, pump, hose reel & tool storage
- All-weather performance

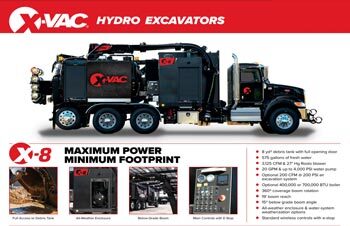

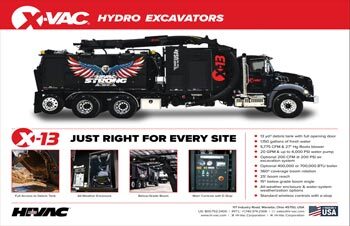

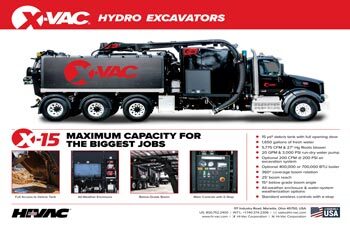

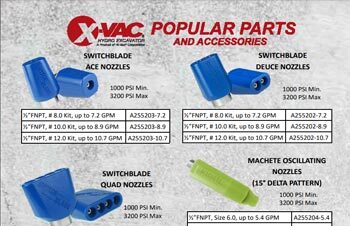

Brochures & spec sheets
